Stackable Products - Low Voltage Model
Tianneng low voltage stackable energy storage products TEIF-HEIF 48100 GL and TEIF-HEIF 4850 GL, using LiFePO4 battery, 51.2 V battery module, recommended 1 to MAX.6 layer, compatible with 48V single-phase or three-phase off-grid solar inverter, very suitable for household emergency backup power supply.
Product Feature
Tianneng household energy storage products have excellent performance, and consumers have a good sense of experience.
Longer service life
＞6000 Times Super Cycle Life
Waterproof design
IP65 waterproof design
Safe and reliable
Premium safety and Long-term reliability，affordable and simple installation
Save money
Money saving & Flexible compatibility，Low self-consumption maximization

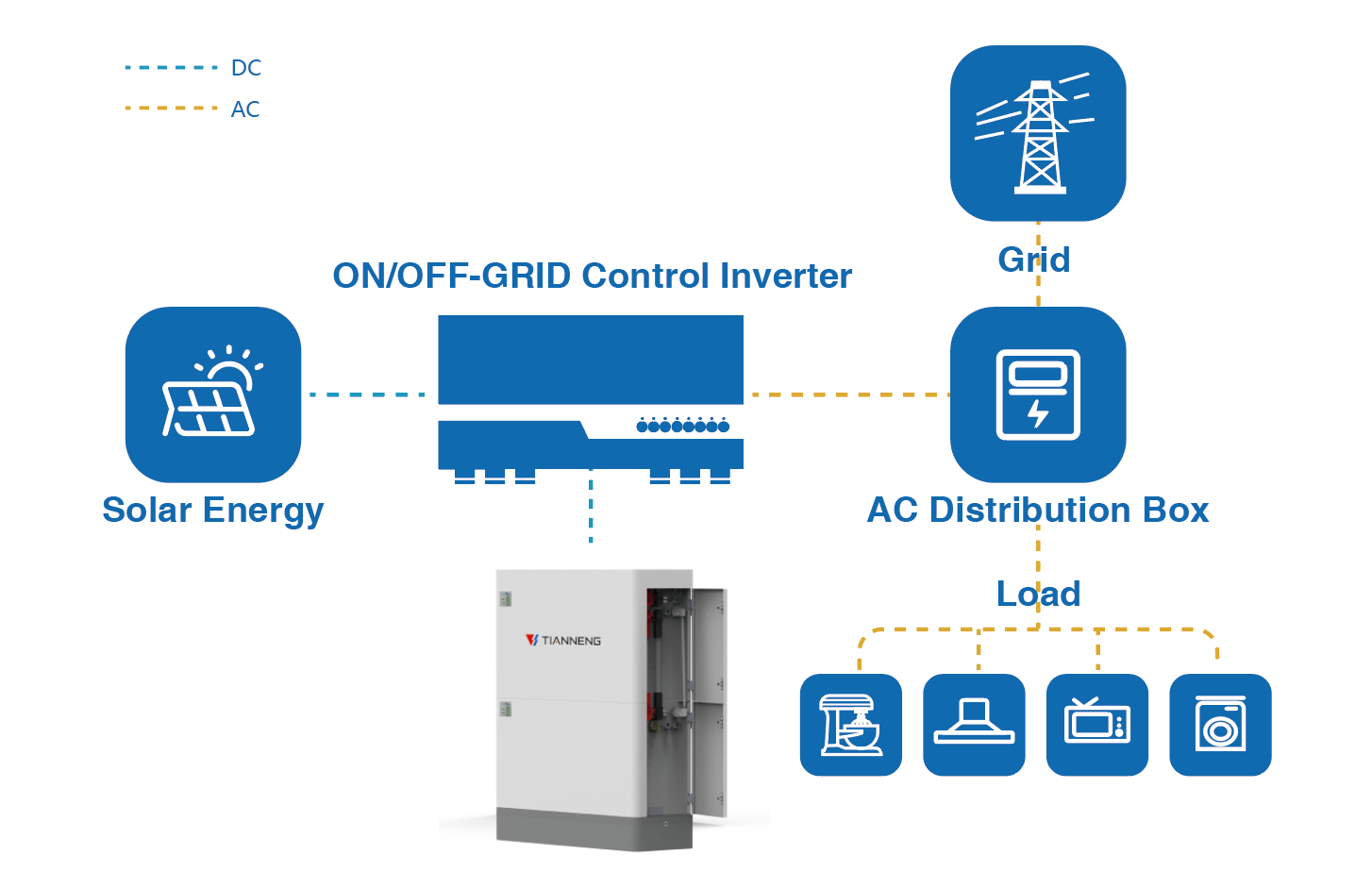

Technical Atlas
Product Specification
| Module | TELiF-HESS 4850GL | TELiF-HESS 48100GL |
|---|---|---|
| Single Module | 51.2V 50Ah | 51.2V 100Ah |
| Battery Energy | 2560 Wh | 5120 Wh |
Nominal Charge/ Discharge Current | 25A | 50A |
| Working Voltage | 43.2~56.16Vdc | 43.2~56.16Vdc |
| Dimension (WxDxH) | 600*210*180mm | 600*210*300mm |
| Operating Voltage | 33.6-43.2V | 22.4-28.8V |
| Weight | 27kg | 48kg |
| Scalability | 1-10 batteries in parallel | 1-6 batteries in parallel |
| Communication | RS485、CAN | |
| IP Rating | IP 65 | |
| Operating Temperature | 0°C~55°C | |
| Cell Technology | LiFePO4 | |
| Cycle Life | 6000 @ 80% DOD, 25°C/0.5C | |
